2019 Nissan Sentra radio connector

A great resource for Nissan Sentra, Infiniti G20, 200sx, Pulsar, NX1600, NX2000, Tsuru, Primera and Sunny owners.
pilotap
Posts: 1
Joined: Sat Oct 26, 2019 12:44 pm
Car: 2019 Nissan Sentra

Post

Hi,
Does anyone know the part number of 2019 Sentra radio 40 pin connector . I am trying to install it in my 2016 Sentra but I have a 32 pin connector . I am trying to re pin the wires into the 40 pin connector. I know for sure they are made by te connectivity but can’t find the part on their website.
Any help is appreciated


wags69
Posts: 9
Joined: Sun Mar 04, 2018 5:40 am
Car: 2009 Nissan Versa
2007 Saab 9-7x
2002 Cadillac Seville STS

Post

You will need to look for electronic supply houses for the connectors
Look for a wire connector guide J-48817_HRK . That has most of the connectors and part numbers for Nissans.

nv200
Posts: 13
Joined: Sat Nov 30, 2019 12:37 am
Car: ???

Post

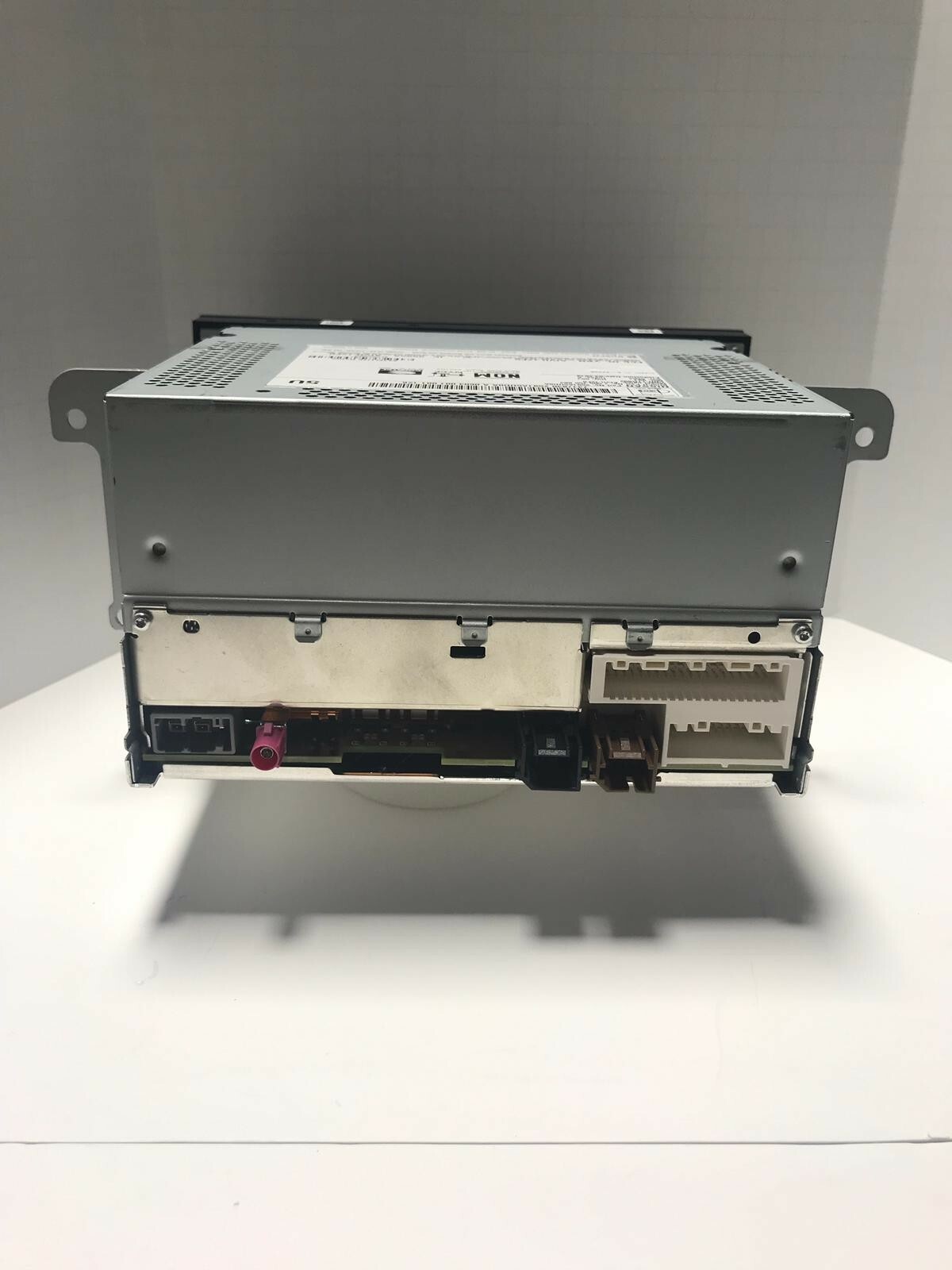

I am doing the same replacement on my 15' NV200 for carplay. what's your previous head unit? Mine comes with navigation and the connectors look like following


and that the new one (40pin) from a donor sentra. GPS antenna is eliminated.
Does your USB port work? Seems like I need a new harness for functional carplay

gahollett12
Posts: 9
Joined: Thu Jun 11, 2020 12:54 pm
Car: 2018.5 Nissan Versa Note SL

Post

any idea what the brown connection dose?

Thanks,

nv200
Posts: 13
Joined: Sat Nov 30, 2019 12:37 am
Car: ???

Post

the brown connecter is reserved for secondary USB port

gahollett12
Posts: 9
Joined: Thu Jun 11, 2020 12:54 pm
Car: 2018.5 Nissan Versa Note SL

Post

Bought the current 7 inch screen stereo, part number 2591A5UD0B out of a 2019 Sentra and installed it in my 2018.5 Versa Note( my Note has the 7 inch screen but does not have Carplay or XM radio). The 40 pin plug, 20 pin plug, XM plug and USB plug plugged into the new unit, the AM/FM antenna is the same color gray but does not plug in, needs to be modified/changed. Sentra car details are in the radio menu, the radio powered on but nothing seemed to work, no back up camera with shifted into reverse, no steering wheel controls worked, Bluetooth would not find other Bluetooth devices. Radio on AM and FM would looks for channels but can't test due to the antenna plug. My question, can the radio be placed into an hard reset to remove the Sentra firmware and see it is connected to an Versa? Will an factory reset enable the camera and steering wheel controls? Is the issue that the wiring harnesses different and I need to find the pin outs for each car? Thanks in advance for your assistance

nv200
Posts: 13
Joined: Sat Nov 30, 2019 12:37 am
Car: ???

Post

it's better to have 2019 Sentra/Versa FSM for steelring wheel and camera harness.

Based on my research '19 Sentra/Versa and '20 NV Series feature the same head unit. Model Number:AIVIL12F0

But the frontier's is different it does not have CarPlay and Android Auto.

gahollett12
Posts: 9
Joined: Thu Jun 11, 2020 12:54 pm
Car: 2018.5 Nissan Versa Note SL

Post

Thanks for the reply but the model number you stated, :AIVIL12F0, is the model I purchased out of the donor car, the Bosch unit. I currently have installed the factory supplied Panasonic unit. The only differences in the two models is the AM/FM plug, all other plugs are the same,

nv200
Posts: 13
Joined: Sat Nov 30, 2019 12:37 am
Car: ???

Post

Ah mine is navigation model with different connectors, see the pic I've replied earlier. The one comes with a blue GPS antenna connector.

Is your head unit the same as Frontier? with a phone button on the front panel? On AIVIL12F0 there is a return button instead.
Last edited by nv200 on Wed Jul 15, 2020 12:10 pm, edited 1 time in total.

gahollett12
Posts: 9
Joined: Thu Jun 11, 2020 12:54 pm
Car: 2018.5 Nissan Versa Note SL

Post

current unit has the phone button.

nv200
Posts: 13
Joined: Sat Nov 30, 2019 12:37 am
Car: ???

Post

gahollett12 wrote:
Wed Jul 15, 2020 12:10 pm
current unit has the phone button.
dude you got the wrong one only the one with return button supports android/carplay
