Something 2J This Way Comes

[Madhatter10-6]

Since this is my first post on the forum a little introduction. My name is Saxon. I am a long time (14 year) member of TT.net and have a Z / boost addiction

I have owned 300ZX's for the last 16 years and had a G35 which I loved. I also currently have a Supra which is what got me into the 2J platform and really like it as well. My good friend Justin "Nancy" and I do builds for people from time to time in the Lexington KY area on both Supras and 300ZX's


I started a post over there and a member ask that I also duplicate the build thread here. I am more than happy to help answer any questions that you guys have and look forward to getting more involved with this forum.

......




My long time friend and fellow Z enthusiast "Nancy" ended up blowing up his VG a month or so ago. After a little arm twisting I got him talked into a 2J swap *evil grin*


The main reasons for doing so are:

1) Dollars to Horsepower ratio

2) Ease to work on in the future

3) And ease to work on in the future

With the changes in turbo technology in the last couple of years you no longer have a lag monster when going over 600 hp on a single turbo 2J. We are shooting for 650hp to the pavement with E85 on a Dyno Dynamics

Some of you will undoubtedly think that this is blasphemous....we think it will be cool.



Build Summary:

VVTI 2J
BC 264 Cams (VVTI compatible)
Comp CT4 6265 Twin Scroll Triplex
Cheapbay Special Manifold
ARP
ID 1k
2x4E85's
Haltech w/HPI 6
300ZX Trans
Modified 369 Diff
Custom exhaust
Custom intercooler / radiator setup

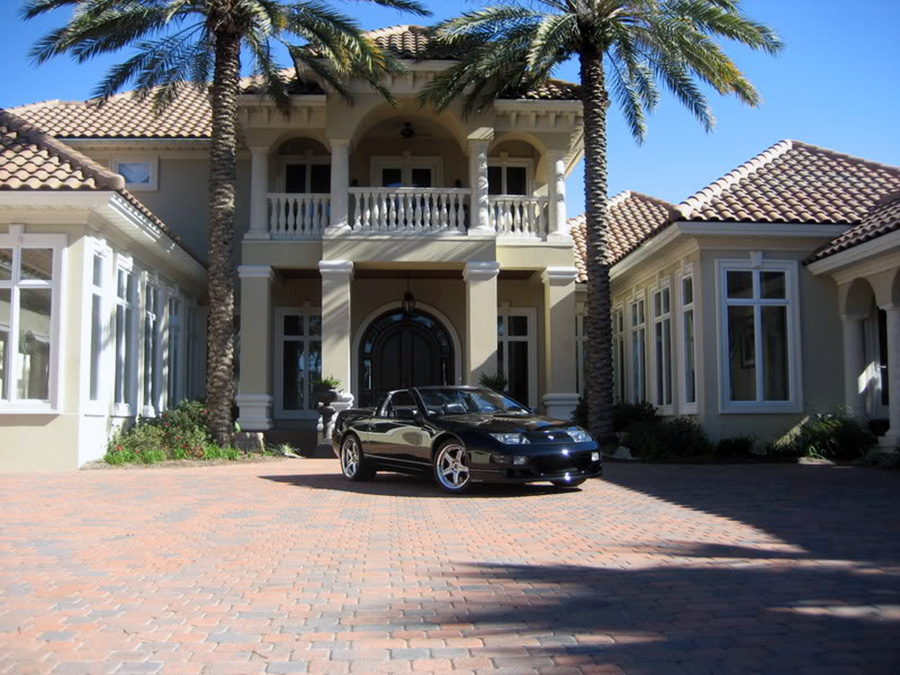

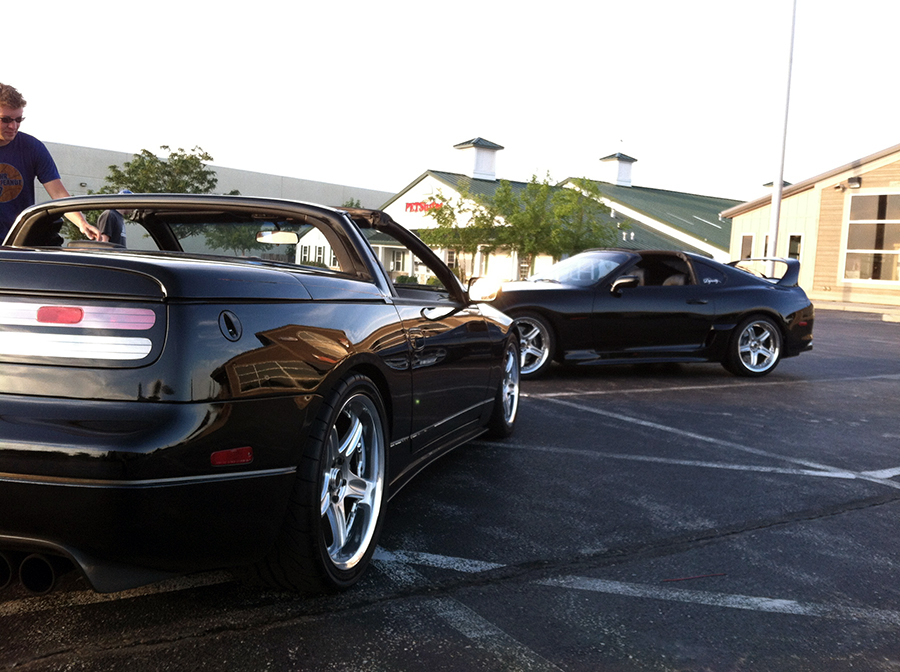

Some shots of his Z....one of the cleanest verts ive ever seen. Its really sad that 99% of all 300Z's that you see out are junk now.









arrival of 2J









Starting to prep the Z














Mocking up oil pan placement






Mock up of the new V mount setup to accommodate the 2J








Starting the prep on the engine bay for paint...














We have the front and rear sump....still playing around ideas on how to fit everything up



Head back from the machine shop



My toys in storage while his Z makes a mess in my garage




more to come soon......
